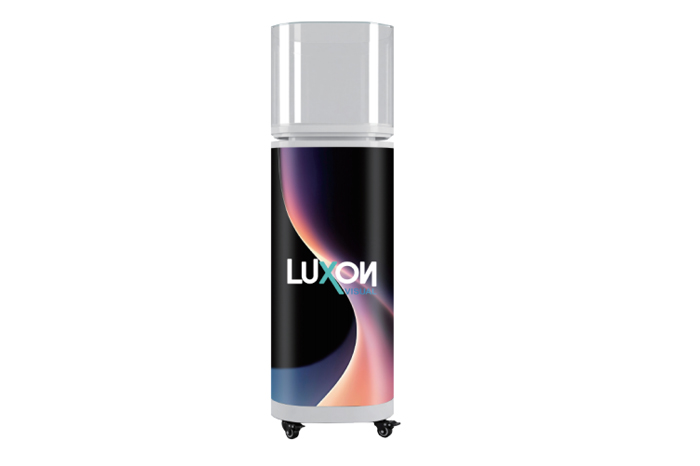

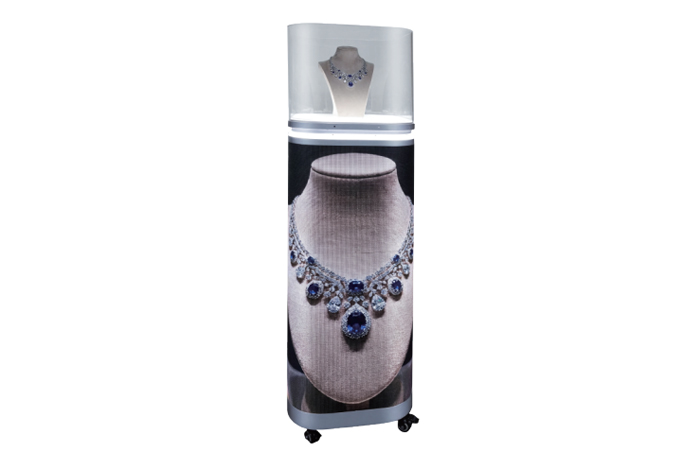

LED Circular Counter
Product Description: A cylinder LED display is a kind of creative led display. With its unique shape and high-definition picture quality, it can achieve a variety of lighting and visual effects.
Contact Us
Home
ProductRetail LED Solutions
LED Circular Counter
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Features
Better visual effects
More attention
Strong Visual Performance
Various Creative LED Displays Available
energy saving and environmental protection
Function
Rich Usage Scenarios
User Friendly, Plug and Play
Light Weight, & Easy installation
Applications

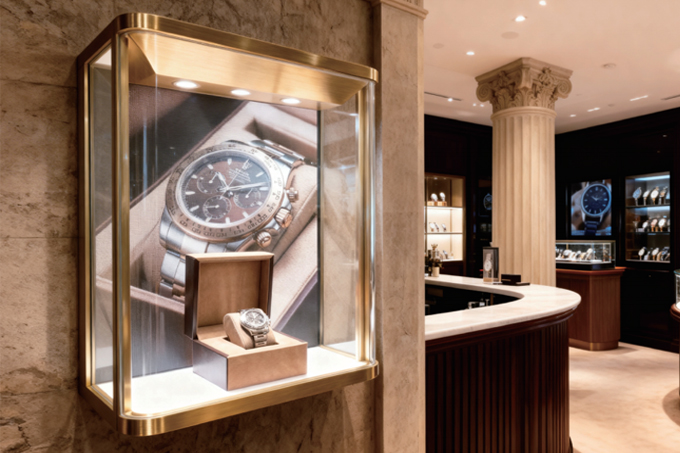

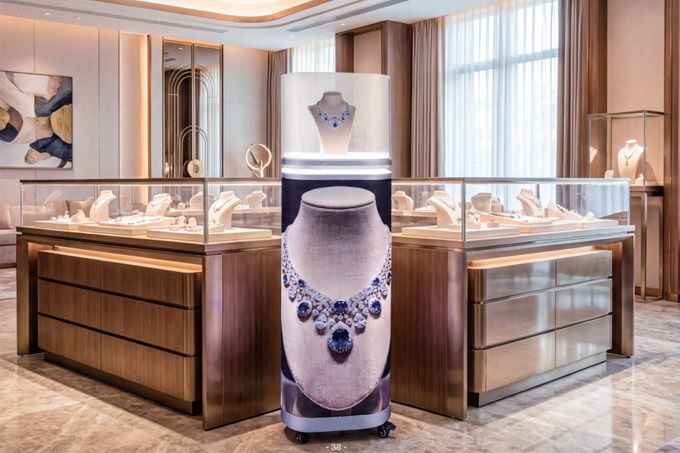

Retail Counters & Showrooms
Restaurants & Cafes
Trade Shows & Exhibitions
Reception Desks
Small Events & Pop-ups
Specifications
1. 53 Circular Counter
Pixel Pitch
1.538mm
Pixel Density
422,500pixels/sqm
Application
Indoor
LED Configuration
GOB1212
Module Size
320*160mm
Module resolution
208*104dots
Shown Size
1280*800mm
Cabinet Size
365*365*1280mm
Display Resolution
832*520dots
Best Viewing distance
≥1.5m
Brightness
600-800nits
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
1. 86 Circular Counter
Pixel Pitch
1.86mm
Pixel Density
288,906pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
172*86dots
Shown Size
1280*800mm
Cabinet Size
365*365*1280mm
Display Resolution
688*430dots
Best Viewing distance
≥1.8m
Brightness
600-800nits
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
2 Circular Counter
Pixel Pitch
2mm
Pixel Density
250,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
160*80dots
Shown Size
1280*800mm
Cabinet Size
365*365*1280mm
Display Resolution
640*400dots
Best Viewing distance
≥2m
Brightness
600-800nits
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
2.5 Circular Counter
Pixel Pitch
2.5mm
Pixel Density
160,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
128*64 dots
Shown Size
1280*800mm
Cabinet Size
365*365*1280mm
Display Resolution
512*320dots
Best Viewing distance
≥2.5m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
Download Full Specsheet
