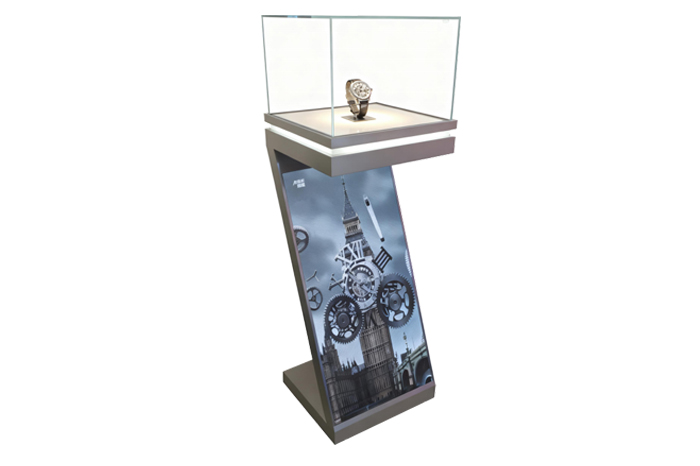

LED Z-shaped Showcase Screen
Product Description: LED Z-shaped screens are specialized,, modern display solutions, often designed as innovative LED indoor Z-shaped display cases for luxury retail, jewelry, and high-end brand showcasing. These displays blend art and technology to elevate product presentations. They are characterized by a distinct Z-shaped, multi-level structure that creates an immersive, center-of-attention effect in retail environments.
Contact Us
Home
ProductRetail LED Solutions
LED Z-shaped Showcase Screen
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Key Features

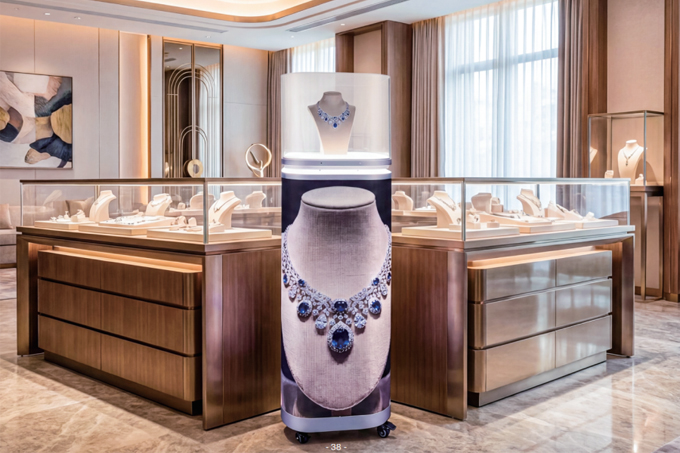

Luxury Retail: Used to showcase high-end products, such as jewelry and cosmetics, by providing a unique, angled, multi-tiered viewing surface.

Creative Display: Often utilized in creative LED installations, offering a non-linear, sculptural alternative to flat screens.
Applications
Jewelry Store
Cosmetics Store
Specialty Store
Shoes Store
luxury Store
Phone & Computer Stores
Camera Boutique
Specifications
1. 53 Z-shaped Showcase Screen panel
Pixel Pitch
1.538mm
Pixel Density
422,500pixels/sqm
Application
Indoor
LED Configuration
GOB1212
Module Size
320*160mm
Module resolution
208*104dots
Cabinet Size
320*640mm
Display Resolution
208*416 dots
Best Viewing distance
≥1.5m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
1. 86 Z-shaped Showcase Screen panel
Pixel Pitch
1.86mm
Pixel Density
288,906pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
172*86dots
Cabinet Size
320*640mm
Display Resolution
172*344 dots
Best Viewing distance
≥1.8m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
2 Z-shaped Showcase Screen panel
Pixel Pitch
2mm
Pixel Density
250,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
160*80dots
Cabinet Size
320*640mm
Display Resolution
160*320dots
Best Viewing distance
≥2m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
2.5 Z-shaped Showcase Screen panel
Pixel Pitch
2.5mm
Pixel Density
160,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
128*64 dots
Cabinet Size
320*640mm
Display Resolution
128*256dots
Best Viewing distance
≥2.5m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
