Creative LED Display FS series
Product Description: Creative LED Display solutions that transcend flat screens — from flexible, rolling, and stage-ready configurations to robust retail and architectural visual platforms. Tailored for brand impact, audience engagement, and commercial ROI.
Contact Us
Home
ProductIndoor LED Displays
Creative LED Display FS series
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact

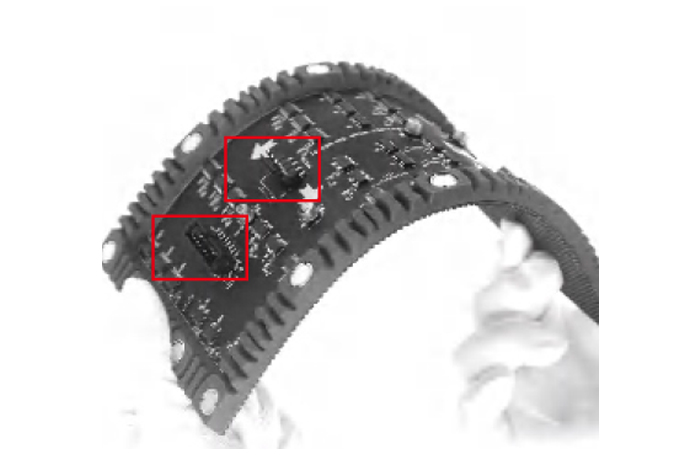

Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features

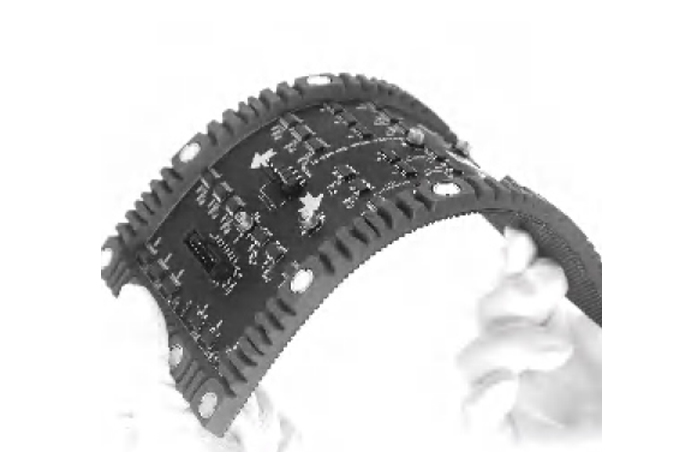

Large Curve Angle Design
FS/FSO Series curve angle can reach more than + 72°
High Strength Magnets
FS /FSO Series designs with very high strength magnets which promise the screen installations safe and reliable.

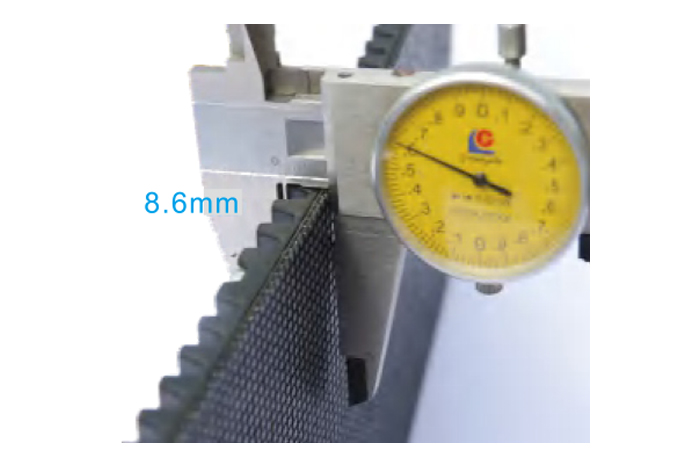

Super slim and lightweight
8.6mm thickness and only7kg/sqm

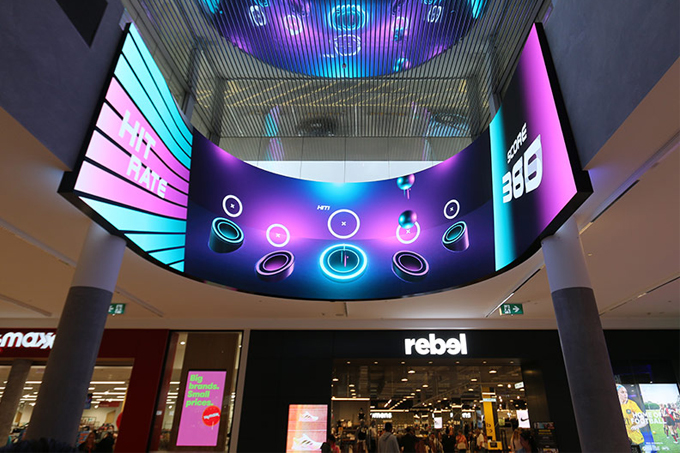

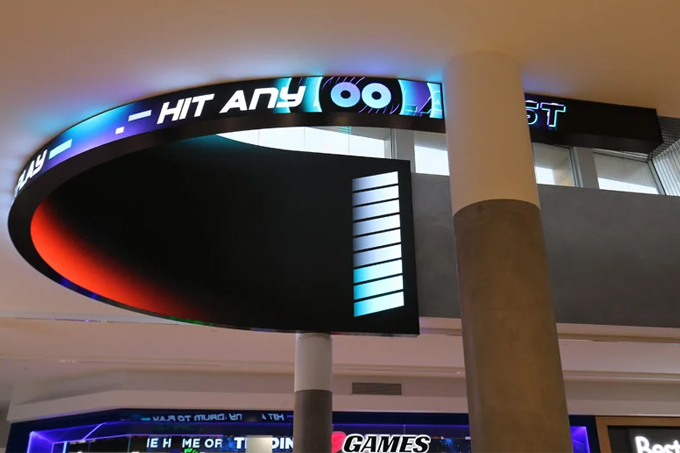

Typical Applications
Event Production & Live Shows
Advertising & Brand Activation
LED Rental Business
Retail & Commercial (Secondary)
Specifications
LV-FS12
Pixel Pitch
1.25mm
Resolution
640,000pixels/sgm
LED Configuration
SMD1010
Module Size
240x120 x86mm
Module Resolution
192x96dots
Best Viewing Distance
>1.2m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
LV-FS15
Pixel Pitch
1.56mm
Resolution
409,600pixels/sgm
LED Configuration
SMD1010
Module Size
240x120 x86mm
Module Resolution
152x76dots
Best Viewing Distance
>1.5m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
LV-FS18
Pixel Pitch
1.875mm
Resolution
284,444pixels/sgm
LED Configuration
SMD1010
Module Size
240x120 x86mm
Module Resolution
128x64 dots
Best Viewing Distance
>1.9m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
LV-FS20
Pixel Pitch
2.0mm
Resolution
250,000pixels/sqm
LED Configuration
SMD1515
Module Size
240x120 x86mm
Module Resolution
120x60 dots
Best Viewing Distance
>2m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
LV-FS25
Pixel Pitch
2.5mm
Resolution
160,000pixels/sqm
LED Configuration
SMD2121
Module Size
240x120 x86mm
Module Resolution
96x48dots
Best Viewing Distance
>2.5m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
LV-FS30
Pixel Pitch
3.0mm
Resolution
105,688pixels/sqm
LED Configuration
SMD2121
Module Size
240x120 x86mm
Module Resolution
80x40dots
Best Viewing Distance
>3m
Panel Size
Customized
Panel Resolution
Depends on Pixel Pitch
Module Arrangement
Customized
Refresh Rate
≥1920Hz
Panel Weight
7kg/sqm
Brightness
800nit
Best Viewing Angle
160°/120°
Working Voltage
AC200~240V(+/-10%)
Maintenance Way
Front/Rear Maintanence
Max Power Consumption
600W/m2
Ave.Power Consumption
150W/m2
Life Span
100,000Hours
Download Full Specsheet
