Outdoor Rental LED Display MR Series
Product Description: Flexible cabinet design supports concave & convex curves Stable visual performance even on non-flat surfaces Rental-optimized structure for repeated assembly Lightweight panels reduce transport and handling effort Indoor & outdoor configurations cover diverse event needs
Contact Us
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Lightweight Design
weight design of the cabinet,
Light more flexible when using, better operation experience.

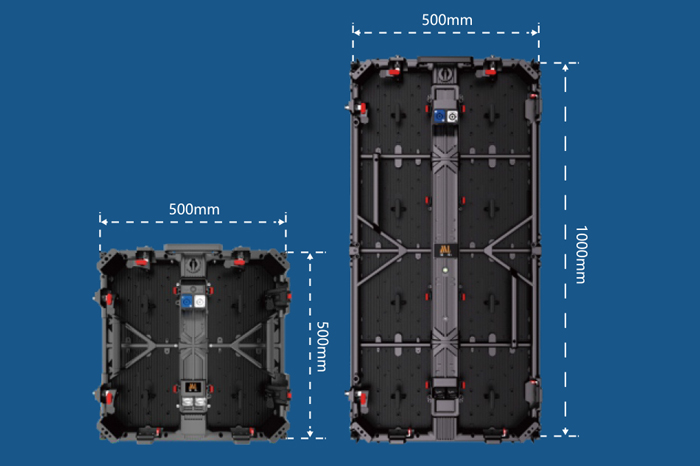

Dual-size design
Dual-size design Lightweight
design
High-brightness
Inner and outer
display
arc shape
Extremely easy
to disassemble
Modular
design
and install

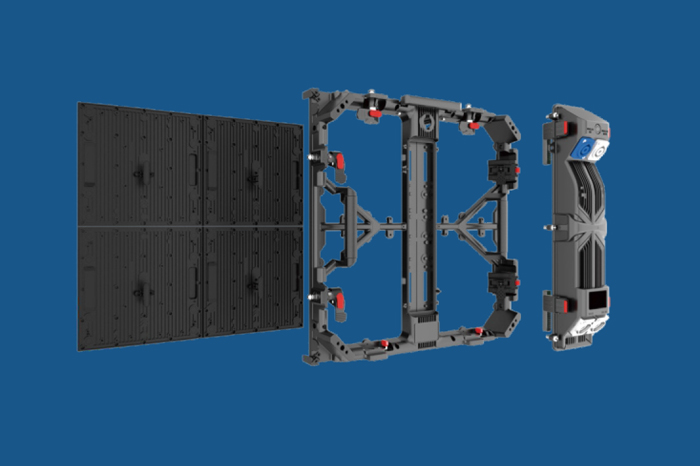

Integrated Modular Design
Egrated power box design, including power supply, receiver card, etc., can be removed by just undoing the clasp. Module adopts "magnetic suction + screw lock" double security design.
Applications of Flexible LED Display
Flexible rental LED display screen refers to an LED display screen specially designed for the stage. Flexible rental LED displays feature a modular design that can be easily connected and configured into various sizes and shapes, such as arc (inner and outer arc), cylindrical or irregular shapes.
Specifications
LV-MR19 Flexible
Pixel Pitch
1.953mm
Resolution
262,144pixels/sqm
Pixel Structure
SMD1415+ GOB
Module Size
500x250mm
Module Resolution
256x128dots
Panel Size
500x500x78mm
Panel Resolution
256x256 dots
Module Arrangement
1x2pcs
Refresh Rate
>7680HZ
Panel Weight
7.0kg+0.5
Brightness
>800nits
Best Viewing Distance
>1.9m
Best Viewing Angle
H160°/140°
Working Voltage
AC100~240V(+/-10%)
IP Rating
Front IP20/ Rear Ip20
Maintenance Way
Rear Maintenance
Max Power Consumption
<580w/m2
Ave. Power Consumption
<200w/m2
Life Span
100,000 Hours
LV-MR26 Flexible
Pixel Pitch
2.604mm
Resolution
147,456pixels/sqm
Pixel Structure
SMD1415
Module Size
500x250mm
Module Resolution
192x96 dots
Panel Size
500x500x78mm
Panel Resolution
192x192dots
Module Arrangement
1x2pcs
Refresh Rate
>7680HZ
Panel Weight
7.0kg+0.5
Brightness
>800nits
Best Viewing Distance
>2.6m
Best Viewing Angle
H160°/140°
Working Voltage
AC100~240V(+/-10%)
IP Rating
Front IP20/ Rear Ip20
Maintenance Way
Rear Maintenance
Max Power Consumption
<580w/m2
Ave. Power Consumption
<180W/m 2
Life Span
100,000 Hours
LV-MR29 Flexible
Pixel Pitch
2.976mm
Resolution
112,896pixels/sqm
Pixel Structure
SMD2020
Module Size
500x250mm
Module Resolution
168x84dots
Panel Size
500x500x78mm
Panel Resolution
168x168dots
Module Arrangement
1x2pcs
Refresh Rate
>7680HZ
Panel Weight
7.0kg+0.5
Brightness
>800nits
Best Viewing Distance
>2.9m
Best Viewing Angle
H160°/140°
Working Voltage
AC100~240V(+/-10%)
IP Rating
Front IP20/ Rear Ip20
Maintenance Way
Rear Maintenance
Max Power Consumption
<580w/m2
Ave. Power Consumption
<200W/m2
Life Span
100,000 Hours
LV-MR39 Flexible
Pixel Pitch
3.91mm
Resolution
65536dots/sqm
Pixel Structure
SMD2020
Module Size
500x250mm
Module Resolution
128x64dots
Panel Size
500x500x78mm
Panel Resolution
128x128dots
Module Arrangement
1x2pcs
Refresh Rate
>7680HZ
Panel Weight
7.0kg+0.5
Brightness
>800nits
Best Viewing Distance
>3.9m
Best Viewing Angle
H160°/140°
Working Voltage
AC100~240V(+/-10%)
IP Rating
Front IP20/ Rear Ip20
Maintenance Way
Rear Maintenance
Max Power Consumption
<580w/m2
Ave. Power Consumption
<180w/m2
Life Span
100,000 Hours
