Outdoor Fixed LED Display QS series
Product Description: Compatible with P2.5,P3,P4,P5,P8,P10,easyfor screen upgrades Ultrathin, lightweight, and highly stable aluminum die casting structure Quick installation in 12 seconds
Contact Us
Home
ProductOutdoor LED Displays
Outdoor Fixed LED Display QS series
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features

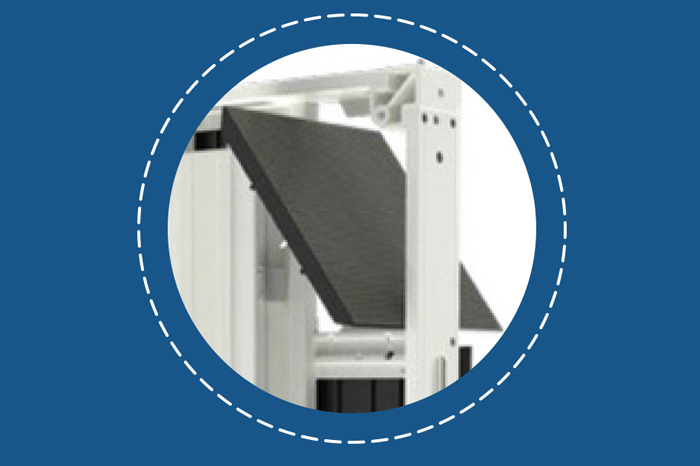

High-end module
High-end module

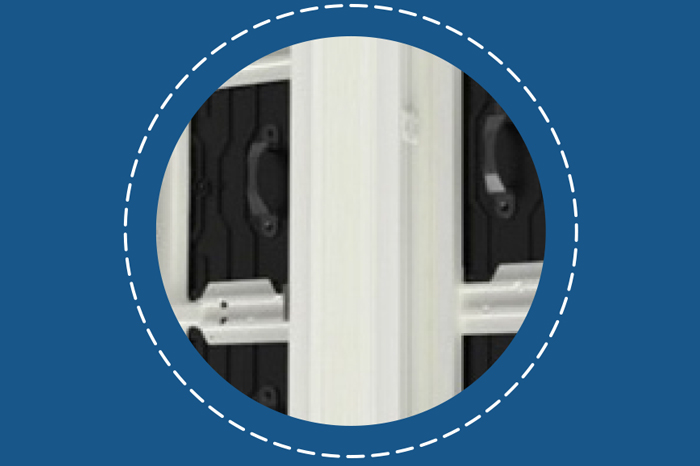

Aluminum sealed panel
Aluminum sealed panel

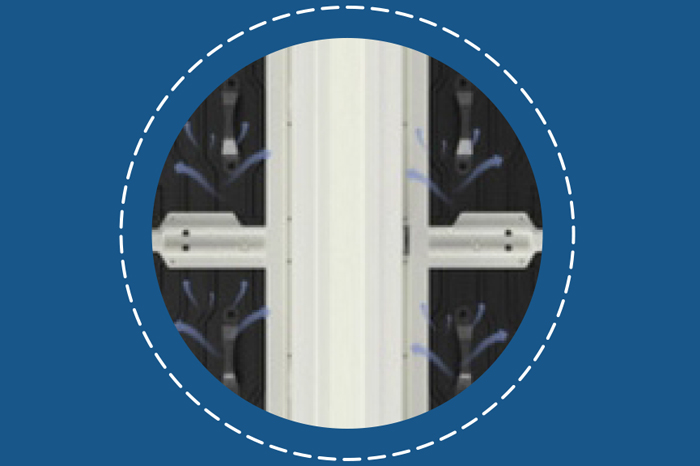

Natural heat dissipation hole
Natural heat dissipation hole
Module intelligent design(No left right)
Module designs with intelligent easy change.
Left right can be change spare parts will fit for both sides
Different pixels modules fit for same cabinet frame
Specifications
LV-QF19-22
Pixel Pitch
P1.95
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
128x128 dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
132
Protection Mask
YES
Cabinet Resolution (W x H)
256 x256 dots
Module Qty
2x2
Cabinet Size (W x H x D)
500x500x83 mm
Cabinet Weight
6.8kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
262,144 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>1.9m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
LV-QF19-23
Pixel Pitch
P1.95
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
128x128 dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
132
Protection Mask
YES
Cabinet Resolution (W x H)
256x384 dots
Module Qty
2x3
Cabinet Size (W x H x D)
500x750x83 mm
Cabinet Weight
10.2kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
262,144 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>1.9m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
LV-QF19-24
Pixel Pitch
P1.95
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
128x128 dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
132
Protection Mask
YES
Cabinet Resolution (W x H)
256x512 dots
Module Qty
2x4
Cabinet Size (W x H x D)
500x1000x83 mm
Cabinet Weight
13.6kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
262,144 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>1.9m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
LV-QF26-22
Pixel Pitch
P2.604
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
96x96dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
1/24
Protection Mask
YES
Cabinet Resolution (W x H)
192 x192 dots
Module Qty
2x2
Cabinet Size (W x H x D)
500x500x83 mm
Cabinet Weight
6.8kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
147,456 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>2.6m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
LV-QF26-23
Pixel Pitch
P2.604
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
96x96dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
1/24
Protection Mask
YES
Cabinet Resolution (W x H)
192 x288 dots
Module Qty
2x3
Cabinet Size (W x H x D)
500x750x83 mm
Cabinet Weight
10.2kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
147,456 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>2.6m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
LV-QF26-24
Pixel Pitch
P2.604
LED Type
SMD1415
Display Color
1RIG1B
Module Resolution (W x H)
96x96dots
Module Size (W x H)
250x 250 x18 mm
Driving Mode
1/24
Protection Mask
YES
Cabinet Resolution (W x H)
192 x384 dots
Module Qty
2x4
Cabinet Size (W x H x D)
500x1000x83 mm
Cabinet Weight
13.6kg
Cabinet Material
Fabricated Aluminum
Installation Method
Back frame/Wall mount installation
Maintenance Method
Back frame/Wall mount installation
Pixel Density/m2
147,456 dots
Brightness
5000 nits
Viewing Angle
140°/120°
Contrast Ratio
5000：1
Ingress Protection
Front: IP65 / Back: Ip54
Best Viewing Distance
>2.6m
Grey Scale
16bit
Refresh Rate
≥3840Hz
Color Temperature
2000K--9500K Adjustment
Color Scale
16.7m
Input voltage
AC200~240V(+/-10%)
Max Power Consumption
700W/m2
Avg Power Consumption
235W/m2
Operating Time
>7x24hrs
MTBF
>10,000 Hours
Life Span
100,000 Hours
Operating Conditions
-10°C~+50°C/10%~90%RH
Environment
Outdoor
Certifications
CE-EMC, CE-LVD, FCC, RoHS
Download Full Specsheet
