Outdoor Fixed LED Display QS series
Product Description: Compatible with P2.5,P3,P4,P5,P8,P10,easyfor screen upgrades Ultrathin, lightweight, and highly stable aluminum die casting structure Quick installation in 12 seconds
Contact Us
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features

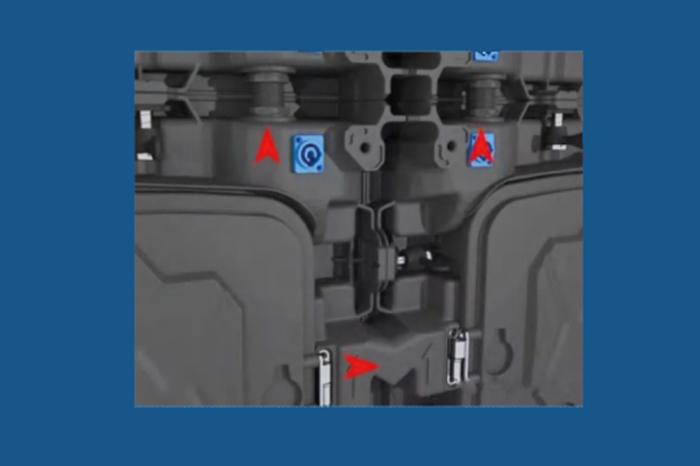

Power connector
With signal and power connector, easy to interconnect

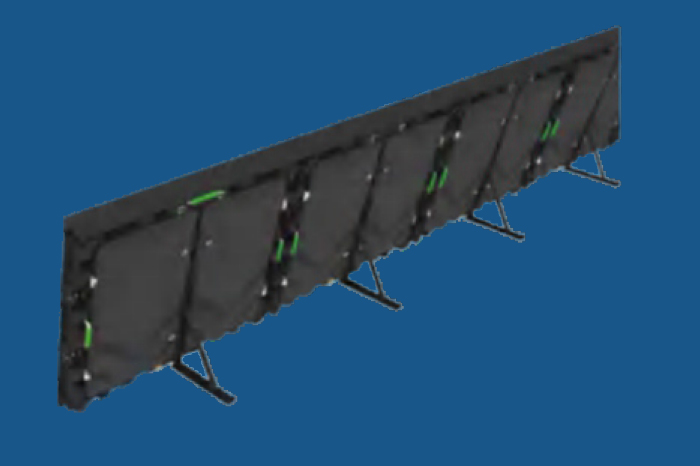

Seamless with good alignment
Product is high brightness, high refresh rate, high IP rating, applicable for both indoor and outdoor sports stadium in different countries;

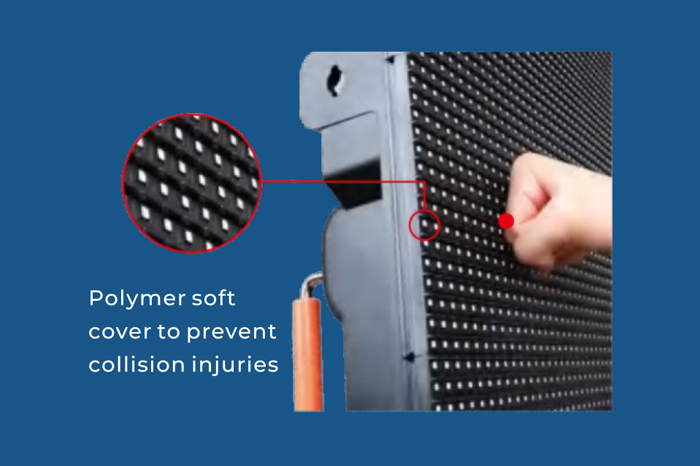

Polymer softcover to prevent collision injuries
Soft mask cover to protection LED perimeter and players

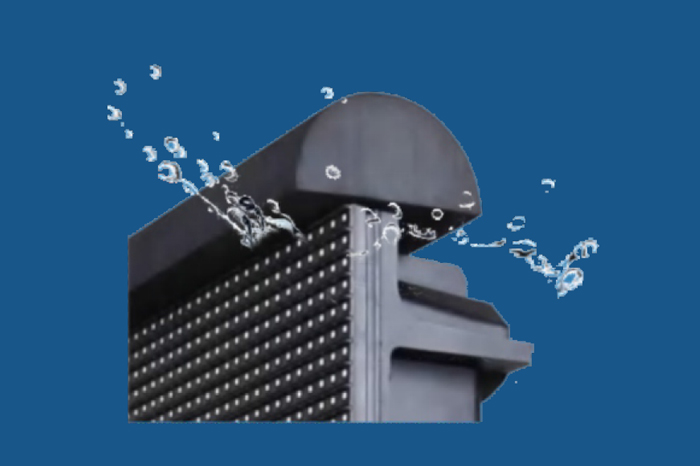

IP65 protection rate
IP65 protection rate and cabinet top cushion that protect the palyers from injury
Module intelligent design(No left right)
Module designs with intelligent easy change.
Left right can be change spare parts will fit for both sides
Different pixels modules fit for same cabinet frame
Specifications
LV-QX67
Pixel Pitch
P6.67
LED Type
SMD2727
Display Color
1RIG1B
Module Resolution (W x H)
48x48dots
Module Size (WxH)
320x320x28 mm
Driving Mode
1/6
Protection Mask
YES
Pixel Density/m2
22,500 dots
Cabinet Resolution (WxH)
144x144 dots
Best Viewing Distance
>10m
Brightness
6000 nits
Cabinet Weight
30kg per cabinet, 35kg/m2
Cabinet Material
Die-cast aluminum
Maintenance Method
Front and Back Maintenance
Cabinet Size (WxHxD)
960x960x142mm
Viewing Angle
140° / 140°
Ingress Protection
Front: IP65/Back: IP54
Refresh Rate
≥1920Hz
Input Voltage
AC200~240V(+/-10%)
Power Consumption
Max:800W/m2 Avg:300W/m2
Life Span
100,000 Hours
Operating Conditions
-10°C~+60°C/0%~90%RH
Certification
CE-EMC, CE-LVD, FCC, RoHS
LV-QS67H
Pixel Pitch
P6.67
LED Type
SMD2727
Display Color
1RIG1B
Module Resolution (W x H)
48x48dots
Module Size (WxH)
320x320x28 mm
Driving Mode
1/6
Protection Mask
long shadow cap
Pixel Density/m2
22,500 dots
Cabinet Resolution (WxH)
144x144 dots
Best Viewing Distance
>10m
Brightness
6000 nits
Cabinet Weight
30kg per cabinet, 35kg/m2
Cabinet Material
Die-cast aluminum
Maintenance Method
Front and Back Maintenance
Cabinet Size (WxHxD)
960x960x142mm
Viewing Angle
140° / 140°
Ingress Protection
Front: IP65/Back: IP54
Refresh Rate
≥1920Hz
Input Voltage
AC200~240V(+/-10%)
Power Consumption
Max:800W/m2 Avg:300W/m2
Life Span
100,000 Hours
Operating Conditions
-10°C~+60°C/0%~90%RH
Certification
CE-EMC, CE-LVD, FCC, RoHS
LV-QS67G
Pixel Pitch
P6.67
LED Type
SMD2727 NS GOLD
Display Color
1RIG1B
Module Resolution (W x H)
48x48dots
Module Size (WxH)
320x320x28 mm
Driving Mode
1/6
Protection Mask
YES
Pixel Density/m2
22,500 dots
Cabinet Resolution (WxH)
144x144 dots
Best Viewing Distance
>10m
Brightness
6000 nits
Cabinet Weight
30kg per cabinet, 35kg/m2
Cabinet Material
Die-cast aluminum
Maintenance Method
Front and Back Maintenance
Cabinet Size (WxHxD)
960x960x142mm
Viewing Angle
140° / 140°
Ingress Protection
Front: IP65/Back: IP54
Refresh Rate
≥1920Hz
Input Voltage
AC200~240V(+/-10%)
Power Consumption
Max:800W/m2 Avg:300W/m2
Life Span
100,000 Hours
Operating Conditions
-10°C~+60°C/0%~90%RH
Certification
CE-EMC, CE-LVD, FCC, RoHS
LV-QS40
Pixel Pitch
P4
LED Type
SMD1921
Display Color
1RIG1B
Module Resolution (W x H)
80 x 80 dots
Module Size (WxH)
320x320x28 mm
Driving Mode
1/6
Protection Mask
YES
Pixel Density/m2
62,500 dots
Cabinet Resolution (WxH)
240x240 dots
Best Viewing Distance
>4m
Brightness
5500 nits
Cabinet Weight
30kg per cabinet, 35kg/m2
Cabinet Material
Die-cast aluminum
Maintenance Method
Front and Back Maintenance
Cabinet Size (WxHxD)
960x960x142mm
Viewing Angle
140° / 140°
Ingress Protection
Front: IP65/Back: IP54
Refresh Rate
≥1920Hz
Input Voltage
AC200~240V(+/-10%)
Power Consumption
Max:800W/m2 Avg:300W/m2
Life Span
100,000 Hours
Operating Conditions
-10°C~+60°C/0%~90%RH
Certification
CE-EMC, CE-LVD, FCC, RoHS
LV-QS50
Pixel Pitch
P5
LED Type
SMD1921
Display Color
1RIG1B
Module Resolution (W x H)
64 x 64 dots
Module Size (WxH)
320x320x28 mm
Driving Mode
1/6
Protection Mask
YES
Pixel Density/m2
40,000 dots
Cabinet Resolution (WxH)
240x240 dots
Best Viewing Distance
>5m
Brightness
5500 nits
Cabinet Weight
30kg per cabinet, 35kg/m2
Cabinet Material
Die-cast aluminum
Maintenance Method
Front and Back Maintenance
Cabinet Size (WxHxD)
960x960x142mm
Viewing Angle
140° / 140°
Ingress Protection
Front: IP65/Back: IP54
Refresh Rate
≥1920Hz
Input Voltage
AC200~240V(+/-10%)
Power Consumption
Max:800W/m2 Avg:300W/m2
Life Span
100,000 Hours
Operating Conditions
-10°C~+60°C/0%~90%RH
Certification
CE-EMC, CE-LVD, FCC, RoHS
