Outdoor Fixed LED Display PH series
Product Description: Luxon PH Series design with super slim only 72mm thickness, Super light weight with 25kg/panel. PH with high brightness, high refresh rate and excellent heat dissipation. Modularization design is convenient for installation and maintenance, which can fit customer demands easily.
Contact Us
Home
ProductOutdoor LED Displays
Outdoor Fixed LED Display PH series
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features

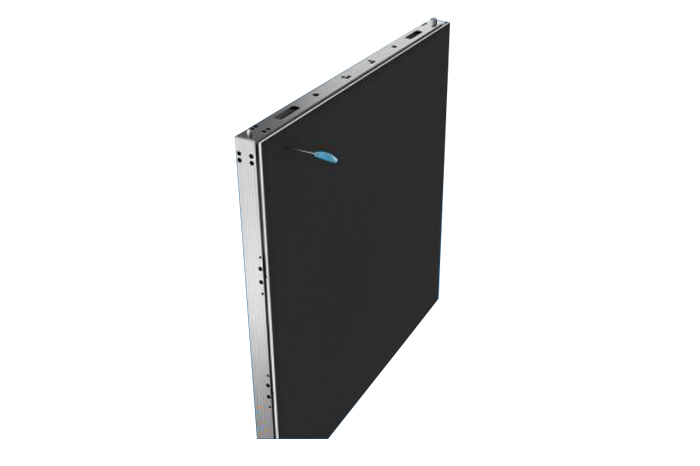

Full front maintenance
The cabinet support full front maintenance. Modularization design is convenient for installation and maintenance, Which can fit customer demands better.

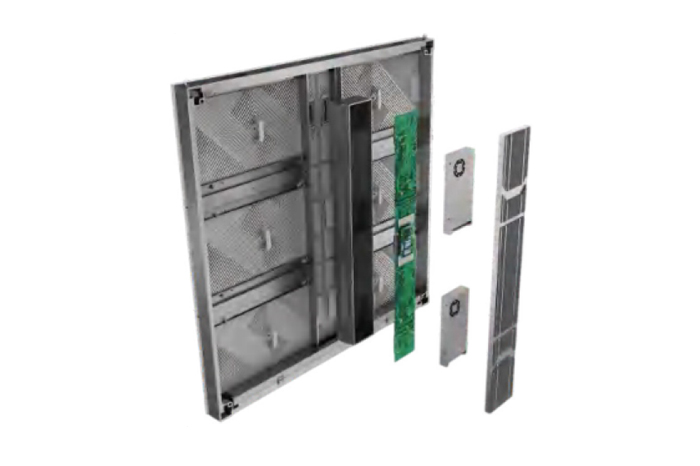

Full rear power box easy maintenance
Open the 3 buckles on the back cover, and unplug the connector to maintain the power supply; remove the fixing screws of the receiving card or adapter plate to maintain the receiving card or adapter plate;

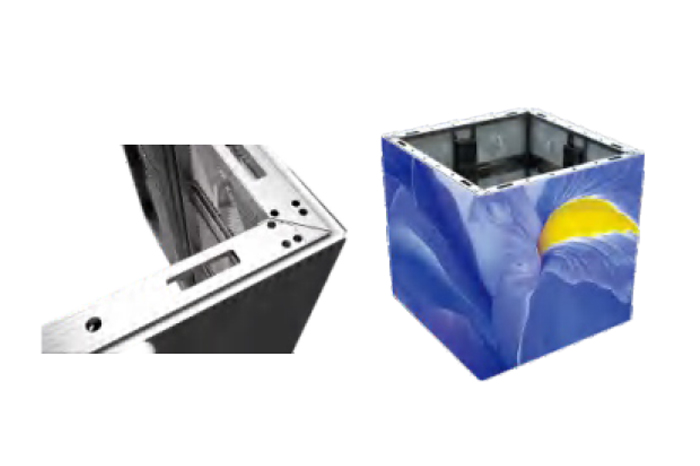

Clean and tidy installations cable hidden box design
Cabinet size: 960*960mm
Full front/Rear installations and maintenance Wireless Designs inside the power box, All the connections done by hard connections without any cables, Even hub-hub connections finished by hub switcher
Module intelligent design(No left right)
Module designs with intelligent easy change.
Left right can be change spare parts will fit for both sides
Different pixels modules fit for same cabinet frame
Specifications
LV-QA57
Pixel Pitch
5.71mm
Pixel Type
1R1G1B
LED Type
SMD2727
Color Temperature
3500K-10000K(adjustable)
Brightness (Max)
6000nits
Viewing Angle
160°/90°
Pixel Density
30625dots/m2
Module Size
480*320mm
Cabinet size
960*960*85mm
Cabinet Resolution
168*168dots
Cabinet Weight
28kg+0.5
Cabinet Material
Aluminum Alloy
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40°C~+60°C / 10%~80%RH
Refresh Rate
3840HZ
Input Voltage
AC110~220V
Maintenance mode
Front & Rear maintenance
Power Consumption
Max:≤550W/m, Avg:<150W/m2
LV-QA67-C
Pixel Pitch
6.67mm
Pixel Type
1R1G1B
LED Type
SMD2727 Cooper Line
Color Temperature
3500K-10000K(adjustable)
Brightness (Max)
6000nits
Viewing Angle
160°/90°
Pixel Density
22500dots/m2
Module Size
480*320mm
Cabinet size
960*960*85mm
Cabinet Resolution
144*144d0ts
Cabinet Weight
28kg+0.5
Cabinet Material
Aluminum Alloy
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40°C~+60°C / 10%~80%RH
Refresh Rate
3840HZ
Input Voltage
AC110~220V
Maintenance mode
Front & Rear maintenance
Power Consumption
Max:≤550W/m, Avg:<150W/m2
LV-QA67-G
Pixel Pitch
6.67mm
Pixel Type
1R1G1B
LED Type
SMD2727 Gold line
Color Temperature
3500K-10000K(adjustable)
Brightness (Max)
10000nits
Viewing Angle
160°/90°
Pixel Density
22500dots/m2
Module Size
480*320mm
Cabinet size
960*960*85mm
Cabinet Resolution
144*144d0ts
Cabinet Weight
28kg+0.5
Cabinet Material
Aluminum Alloy
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40°C~+60°C / 10%~80%RH
Refresh Rate
3840HZ
Input Voltage
AC110~220V
Maintenance mode
Front & Rear maintenance
Power Consumption
Max:≤550W/m, Avg:<150W/m2
LV-QA80-G
Pixel Pitch
8mm
Pixel Type
1R1G1B
LED Type
SMD2727 Gold line
Color Temperature
3500K-10000K(adjustable)
Brightness (Max)
10000nits
Viewing Angle
160°/90°
Pixel Density
15625dots/m2
Module Size
480*320mm
Cabinet size
960*960*85mm
Cabinet Resolution
120*120dots
Cabinet Weight
28kg+0.5
Cabinet Material
Aluminum Alloy
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40°C~+60°C / 10%~80%RH
Refresh Rate
3840HZ
Input Voltage
AC110~220V
Maintenance mode
Front & Rear maintenance
Power Consumption
Max:≤550W/m, Avg:<150W/m2
LV-QA10-G
Pixel Pitch
10mm
Pixel Type
1R1G1B
LED Type
SMD2727 Gold line
Color Temperature
3500K-10000K(adjustable)
Brightness (Max)
10000nits
Viewing Angle
160°/90°
Pixel Density
10000dots/m2
Module Size
480*320mm
Cabinet size
960*960*85mm
Cabinet Resolution
96*96dots
Cabinet Weight
28kg+0.5
Cabinet Material
Aluminum Alloy
IP Rating
Front IP68/Rear IP66
Operating Temperature/Humidity
-40°C~+60°C / 10%~80%RH
Refresh Rate
3840HZ
Input Voltage
AC110~220V
Maintenance mode
Front & Rear maintenance
Power Consumption
Max:≤550W/m, Avg:<150W/m2
Download Full Specsheet
