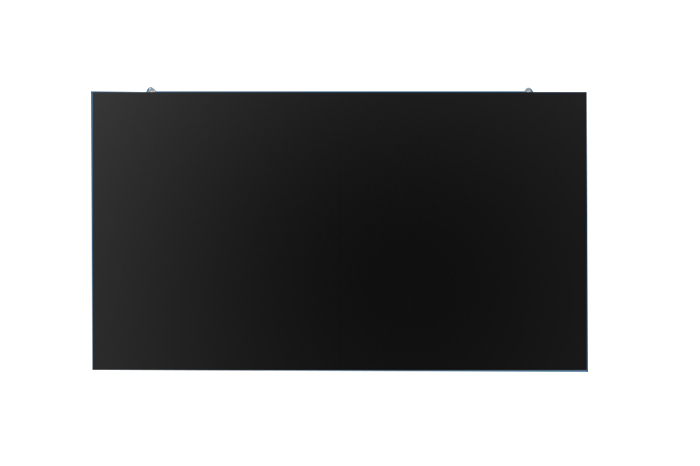

Product Description: Seamless splicing between cabinets and modules Perfect for customization up to module sizes LED Module Magnet design for easy alignment
Support Front/Rear maintenance. Lightweight 17KG per sqm
Support GOB encapsulation technology (customizable)Customization is freely for any type LED modules and design. Dot to dot calibration ensures color richness and brightness uniformity Easy to install and maintenance.
100,000 hours lifespan, low maintenance cost
High Brightness and low energy-consumption, it can increase 20% brightness or decrease 20%consumption for better hear dissipation and better contrast.

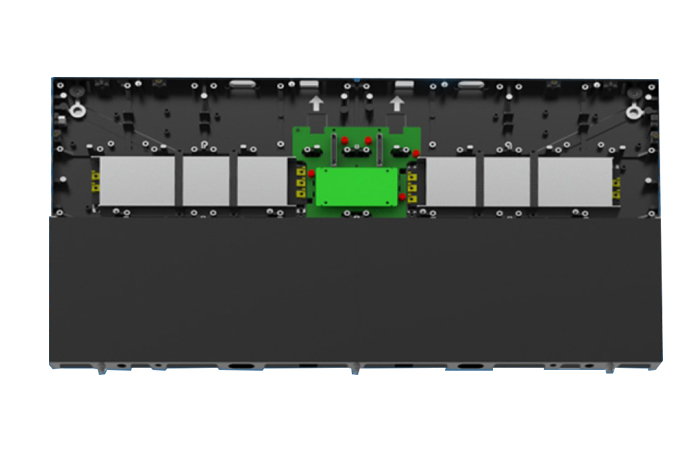

Dual Backup
Dual redundant power supplies and Receiving Card in each panel. If one power supply or card fails, the other can ensure normal working of panel.

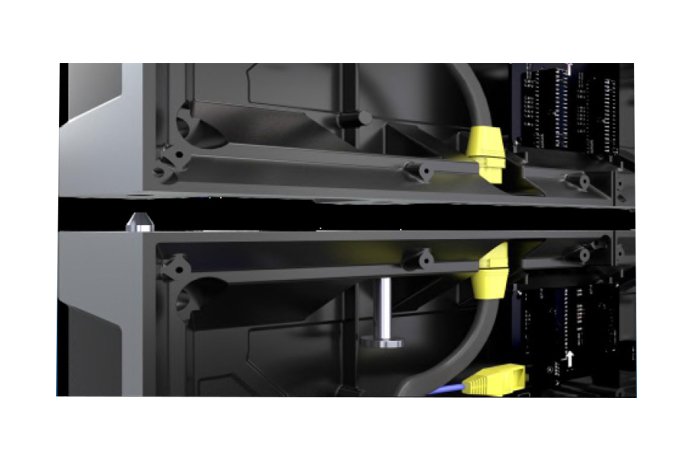

Wireless Connections
No cables between cabinets and no apparent cables outside the cabinet. Inner cable connection will make the transmission of signal and power more table, and the whole will look more neat and simple.

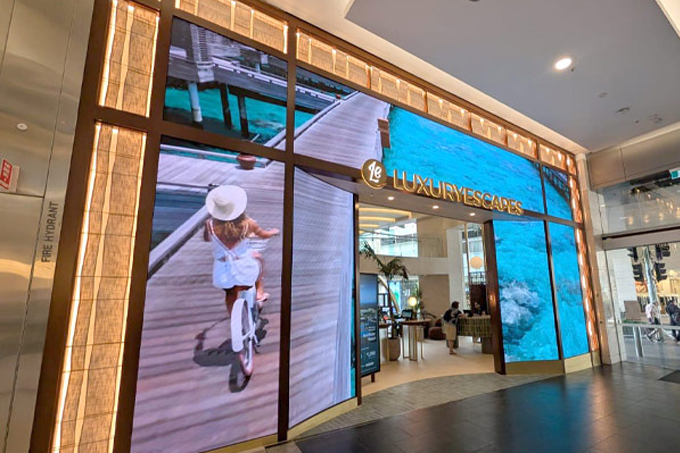

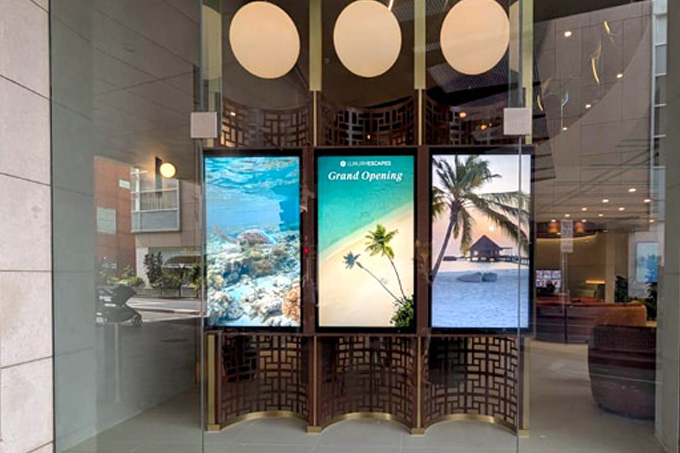

Fine Pixel Pitch LED Display optimized for indoor fixed installation
Built with high-density indoor COB screen technology
Engineered for long-hour operation in controlled indoor environments
Pixel Pitch: distance between LEDs; smaller pitch delivers higher resolution
Brightness (cd/m²): balanced for indoor lighting comfort
Refresh Rate: ensures smooth video and flicker-free visuals
Specifications
LV-IS15
Pixel Pitch
1.538mm
LED Configuration
SMD1212 (GOB)
Brightness
600 nits
viewing angle
140°/140°
Pixel Density
422,500 dots/m2
Refresh rate
≥3840Hz
Cabinet Aspect Ratio
4：3
Module size
320 x 160 x 12mm (W x H x D)
Panel size
Standard 640mm x480mm x110mm (W x H x D),640mm x640mm x110mm (W x H x D)
Panel Weight
17kg/sqm, customized metal cabinet
input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
250W/sqm
Power consumption (Max)
700W/sqm
Working temperature
-20°C~60°C
IP rating
IP30/IP30
Life Span
≥100000hours
LV-IS18
Pixel Pitch
1.86mm
LED Configuration
SMD1515 (GOB)
Brightness
600 nits
viewing angle
140°/140°
Pixel Density
288,906 dots/m2
Refresh rate
≥3840Hz
Cabinet Aspect Ratio
4：3
Module size
320 x 160 x 12mm (W x H x D)
Panel size
Standard 640mm x480mm x110mm (W x H x D),640mm x640mm x110mm (W x H x D)
Panel Weight
17kg/sqm, customized metal cabinet
input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
250W/sqm
Power consumption (Max)
700W/sqm
Working temperature
-20°C~60°C
IP rating
IP30/IP30
Life Span
≥100000hours
LV-IS20
Pixel Pitch
2.0mm
LED Configuration
SMD1515 (GOB)
Brightness
600/2000 nits
viewing angle
140°/140°
Pixel Density
250,000 dots/m2
Refresh rate
≥3840Hz
Cabinet Aspect Ratio
4：3
Module size
320 x 160 x 12mm (W x H x D)
Panel size
Standard 640mm x480mm x110mm (W x H x D),640mm x640mm x110mm (W x H x D)
Panel Weight
17kg/sqm, customized metal cabinet
input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
250W/sqm
Power consumption (Max)
700W/sqm
Working temperature
-20°C~60°C
IP rating
IP30/IP30
Life Span
≥100000hours
LV-IS25
Pixel Pitch
2.5mm
LED Configuration
SMD2121
Brightness
600/2000 nits
viewing angle
140°/140°
Pixel Density
160,000 dots/m2
Refresh rate
≥3840Hz
Cabinet Aspect Ratio
4：3
Module size
320 x 160 x 12mm (W x H x D)
Panel size
Standard 640mm x480mm x110mm (W x H x D),640mm x640mm x110mm (W x H x D)
Panel Weight
17kg/sqm, customized metal cabinet
input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
250W/sqm
Power consumption (Max)
700W/sqm
Working temperature
-20°C~60°C
IP rating
IP30/IP30
Life Span
≥100000hours
LV-IS30
Pixel Pitch
3.0mm
LED Configuration
SMD2121
Brightness
600/2000 nits
viewing angle
140°/140°
Pixel Density
111,111 dots/m2
Refresh rate
≥1920Hz
Cabinet Aspect Ratio
4：3
Module size
320 x 160 x 12mm (W x H x D)
Panel size
Standard 640mm x480mm x110mm (W x H x D),640mm x640mm x110mm (W x H x D)
