Indoor Fixed LED Display
Product Description: High-resolution indoor fixed LED display designed for close-viewing commercial environments, delivering precise image detail, stable performance, and flexible installation for permanent indoor applications.
Contact Us
Home
ProductIndoor LED Displays
Indoor Fixed LED Display
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact

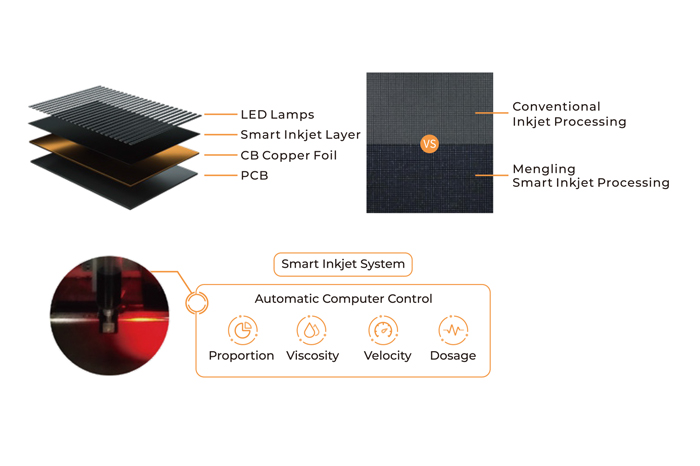

Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Built with high-density indoor COB screen technology
Support GOB encapsulation technology (customizable)Customization is freely for any type LED modules and design. Dot to dot calibration ensures color richness and brightness uniformity Easy to install and maintenance.

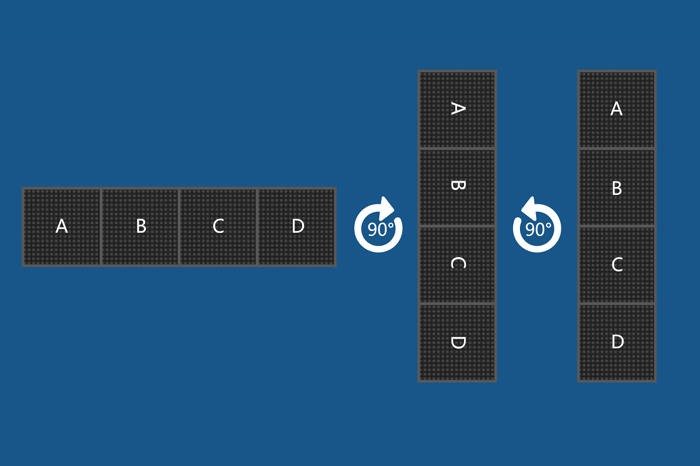

90°Rotation
As modules are wired center-symmetrically, L Series supports 90° rotated assembly without color cast, providing higher flexibility.

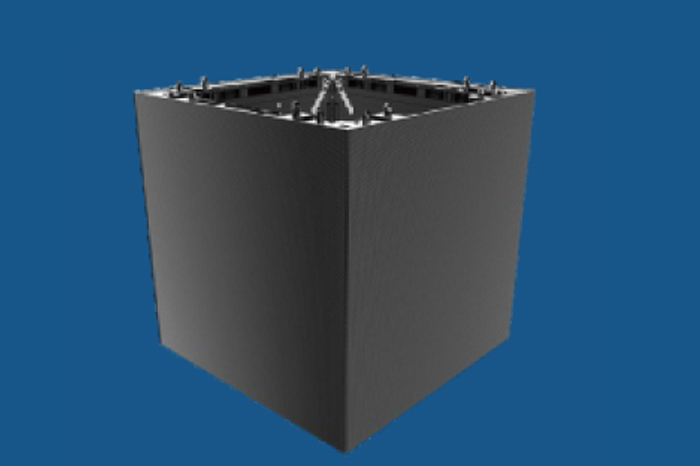

Perfect 90° Splicing
45° bevel is optional to splice L shapes to realize more creativity.
Fine Pixel Pitch LED Display optimized for indoor fixed installation
Fine pitch LED displays are LED displays with LED point spacing below P2.5, mainly including P2.0, P1.8, P1.5, P1.6, P1.2, P0.8 .
With the improvement of LED display manufacturing technology, the resolution of traditional LED displays has been significantly improved.
Specifications
LV-MLI5
Pixel Pitch
1.5625mm
Resolution
409,600pixels/sqm
Pixel Structure
SMD1010
Module Size
250x250mm
Module Resolution
160x160dots
Panel Resolution
320x640/320x480/320x320/320x160/640x160/480x160 dots
Panel Size
1000x500x28mm/750x500x28mm/500x500x28mm/500x250x28mm/1000x250x28mm/750x250x28mm
Refresh Rate
>3840HZ
Panel Weight
9.5/7.5/5/2.8/5.2/4kgs
Brightness
>600nits
Best Viewing Angle
H160%/140°
Working Voltage
AC100~240V (+/-10%)
Maintenance Way
Front/Rear Maintenance
Max Power Consumption
<550W/m2
Ave. Power Consumption
<138W/m
Best Viewing Distance
>1.5m
Life Span
100,000 Hours
LV-ML19
Pixel Pitch
1.953mm
Resolution
262,144pixels/sqm
Pixel Structure
SMD1515
Module Size
250x250mm
Module Resolution
128x128dots
Panel Resolution
256x512/256x384/256x256/256x128/512x128/384x128 dots
Panel Size
1000x500x28mm/750x500x28mm/500x500x28mm/500x250x28mm/1000x250x28mm/750x250x28mm
Refresh Rate
>3840HZ
Panel Weight
9.5/7.5/5/2.8/5.2/4kgs
Brightness
>600nits
Best Viewing Angle
H160%/140°
Working Voltage
AC100~240V (+/-10%)
Maintenance Way
Front/Rear Maintenance
Max Power Consumption
<510W/m2
Ave. Power Consumption
<170W/m2
Best Viewing Distance
>1.9m
Life Span
100,000 Hours
Download Full Specsheet
