Indoor Fine Pitch COB LED Display
Product Description: Mini Flip COB(Chips on Board) technology. Ultra-thin 39mm and super-light 4.5kg design.16:9 Golden aspect ratio, can easily achieve pixel to pixel2K,4K,8K,16K resolution. CNC die-casting aluminum cabinet, splicing tolerance is controlled within +0.lmm.All parts support front maintenance. Dot by dot calibration ensures color richness and brightness uniformity.
Contact Us
Home
ProductIndoor LED Displays
Indoor Fine Pitch COB LED Display
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Highlights
Flip COB Design
Offers full illumination and softer light without pixel particles, effectively combating digital visual fatigue.

High Contrast
Product Contrast Ratio: 10000:1

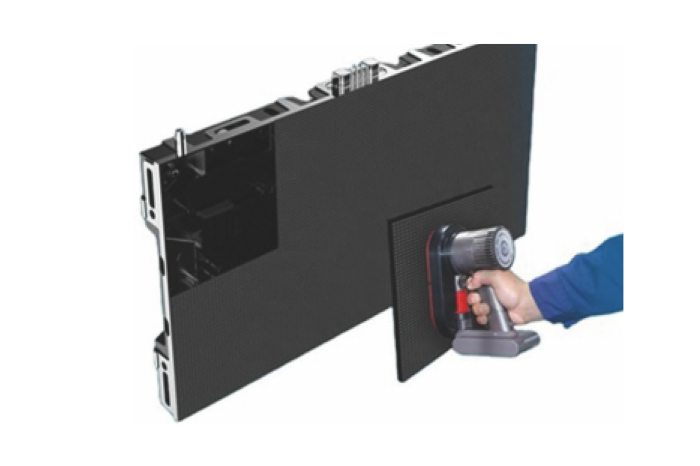

Full Front Maintenance
Allows full front maintenance, making disassembly and maintenance highly efficient.

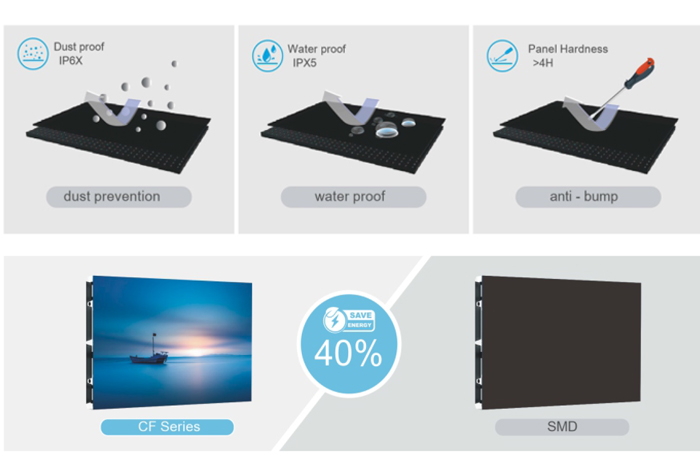

High Protection
It has dust proof and anti-fingerprint surface, leaving no visible traces when touched. It is also waterproof and moisture-proof, with low rate of dead pixels and high hardness against minor knocks.

The power consumption of a single box is less than 75 watts, which is 40% lower than SMD products.
Good Ink Consistency
With the full control of the ink color parameters on the surface of the lightboard, the ink color at all angles is guaranteed to be uniform. It significantly solves the  industry's issue regarding ink color difference in batches.
Specifications
LV-CFO7
Pixel pitch
0.78mm
LED configuration
Flip COB Chip
Brightness
600 nits
Viewing angle
160/60°
Pixel Density
1,638,400dots/m2
Refresh rate
≥3840Hz
Module size
150mm x168.75mm x 3mm (W x H x D)
Panel size
600mm x337.5mm x39.75mm (W x H x D)
Panel weight
4.5kg/pcs, Die-cast Aluminum
Input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
140w/sqm
Power consumption (Max)
420W/sqm
Working temperature
-20°C~60°C
IP rating
1P65/P43
Life span
100,000 hrs
LV-CFO9
Pixel pitch
0.93mm
LED configuration
Flip COB Chip
Brightness
600 nits
Viewing angle
160/60°
Pixel Density
1,137,777dots/m2
Refresh rate
≥3840Hz
Module size
150mm x168.75mm x 3mm (W x H x D)
Panel size
600mm x337.5mm x39.75mm (W x H x D)
Panel weight
4.5kg/pcs, Die-cast Aluminum
Input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
140w/sqm
Power consumption (Max)
420W/sqm
Working temperature
-20°C~60°C
IP rating
1P65/P43
Life span
100,000 hrs
LV-CF12
Pixel pitch
1.25mm
LED configuration
Flip COB Chip
Brightness
600 nits
Viewing angle
160/60°
Pixel Density
640,000dots/m2
Refresh rate
≥3840Hz
Module size
150mm x168.75mm x 3mm (W x H x D)
Panel size
600mm x337.5mm x39.75mm (W x H x D)
Panel weight
4.5kg/pcs, Die-cast Aluminum
Input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
140w/sqm
Power consumption (Max)
420W/sqm
Working temperature
-20°C~60°C
IP rating
1P65/P43
Life span
100,000 hrs
LV-CF15
Pixel pitch
1.56mm
LED configuration
Flip COB Chip
Brightness
600 nits
Viewing angle
160/60°
Pixel Density
409,600dots/m2
Refresh rate
≥3840Hz
Module size
150mm x168.75mm x 3mm (W x H x D)
Panel size
600mm x337.5mm x39.75mm (W x H x D)
Panel weight
4.5kg/pcs, Die-cast Aluminum
Input voltage
AC100~240V 50/60 HZ
Power consumption (Avg)
140w/sqm
Power consumption (Max)
420W/sqm
Working temperature
-20°C~60°C
IP rating
1P65/P43
Life span
100,000 hrs
Download Full Specsheet
