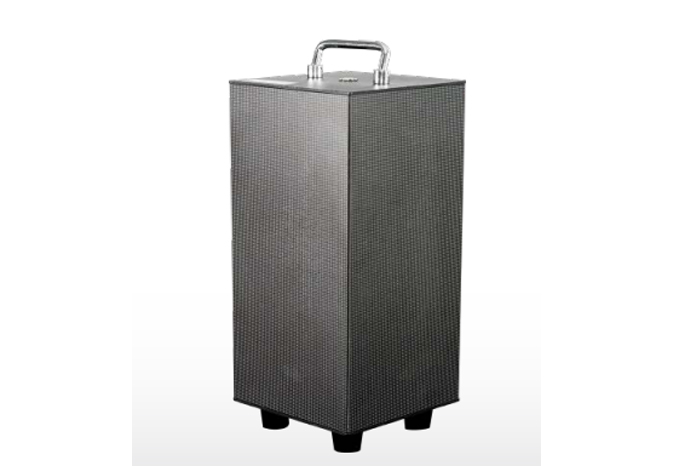

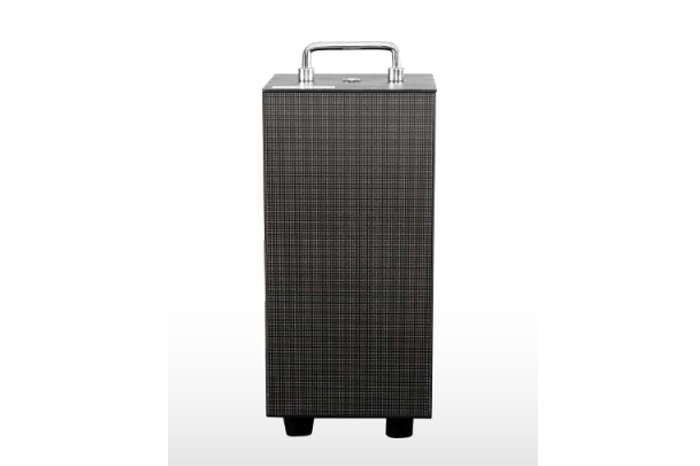

LED Battery Screen
Product Description: Creative LED Display solutions that transcend flat screens — from flexible, rolling, and stage-ready configurations to robust retail and architectural visual platforms. Tailored for brand impact, audience engagement, and commercial ROI.
Contact Us
Home
ProductRetail LED Solutions
LED Battery Screen
Black
Extraordinary deep blacks
Brilliant
Capture every brilliance
Cool
Stay cool, enjoy more
Strong
Against external impact
Flip Chip Technology
High reliability
Energy-saving Technology
Less consumption
Product Features
Features
Light Weight, & Easy installation
User Friendly, Plug and Play
Rich Usage Scenarios
Better visual effects
Function
Outstanding Visual Effect
Innovative Structural Design
Wide Range of Application Scenarios
Applications
Retail Counters & Showrooms
Restaurants & Cafes
Trade Shows & Exhibitions
Reception Desks
Small Events & Pop-ups
Specifications

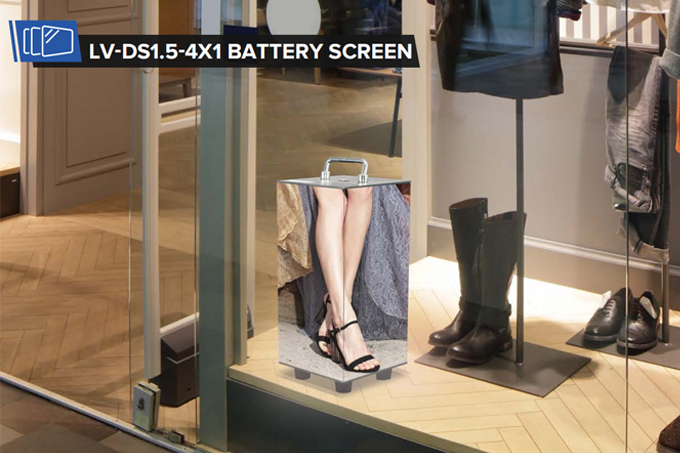

LV-DS1.5-4X1 Battery Screen
Pixel Pitch
1.538mm
Pixel Density
422,500pixels/sqm
Application
Indoor
LED Configuration
GOB1212
Module Size
320*160mm
Module resolution
208*104dots
Shown Size
320*160mm - 4 sides
Cabinet Size
340*340 mm
Display Resolution
416*208dots
Best Viewing distance
≥1.5m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
LV-DS1.8-4X1 Battery Screen
Pixel Pitch
1.86mm
Pixel Density
288,906pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
172*86dots
Shown Size
320*160mm - 4 sides
Cabinet Size
340*340 mm
Display Resolution
344*172dots
Best Viewing distance
≥1.8m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
LV-DS2-4X1 Battery Screen
Pixel Pitch
2mm
Pixel Density
250,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
160*80dots
Shown Size
320*160mm - 4 sides
Cabinet Size
340*340 mm
Display Resolution
320*160dots
Best Viewing distance
≥2m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
LV-DS2.5-4X1 Battery Screen
Pixel Pitch
2.5mm
Pixel Density
160,000pixels/sqm
Application
Indoor
LED Configuration
SMD1515
Module Size
320*160mm
Module resolution
128*64 dots
Shown Size
320*160mm - 4 sides
Cabinet Size
340*340 mm
Display Resolution
256*128dots
Best Viewing distance
≥2.5m
Brightness
600-800nits
Brightness
5000cd
Refresh Rate
3840 Hz
Best Viewing Angle
X:140° / Y:120°
Working Voltage
AC200~240V (+/-10%)
Maintenance Way
Front /Rear Maintaence
Power Consumption
<360W/m²
Life Span
100,000Hours
Download Full Specsheet
